Product Overview

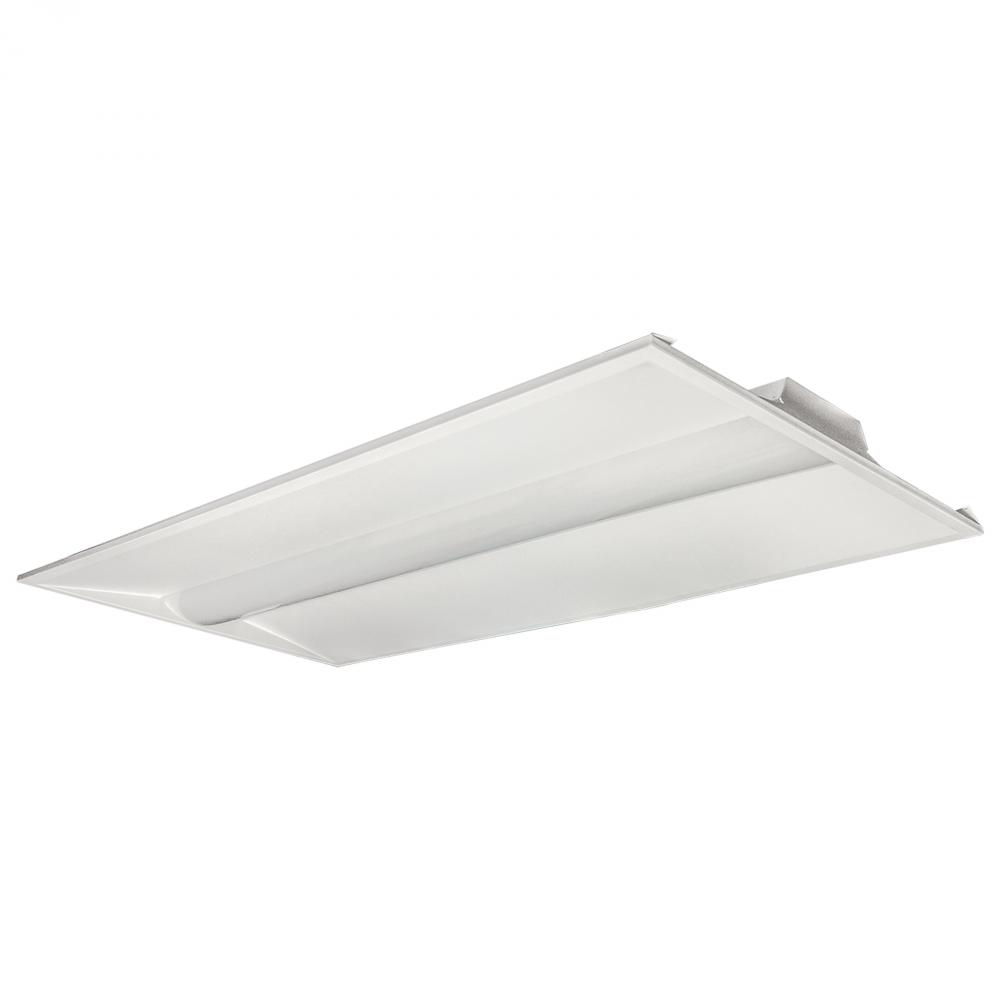

2X4 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable

Standard Information

Category:

Specialty Items

Subcategory:

Lighting Accessories

Option:

LED

Prop 65

Lumens:

3300+

Refinement Options

Category:

Troffer

Sub Category:

Center Basket

Additional Info:

90 Minute Battery Runtime

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

25.71

Each Length:

49.49

Each Width:

4.33

Length:

47.72

Lumens:

3300L-5500L

Tariff Code:

9405.10.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.300-0.108/0.400-0.144/0.500-0.181A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

80

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard

DLC Primary Use:

2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

3.1883

Each Quantity:

1

Efficacy:

110.00 LPW

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable ( 3500K, 4000K, 5000K)

Feature 2:

3 Wattage Selectable (30W, 35W, 40W)

Feature 3:

0-10V Dimmable

Feature 4:

DLC Listed

Feature 5:

Length: 47.72 inches X Width:23.74 inches X Height: 3.02 inches

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Driver:

Yes

Has Emergency Battery:

Yes

HID Equiv:

70W-125W

IC Rated:

Yes

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

No

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO's 65-693 2x4 Emergency Backup Single Basket rectangular troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver te

Material:

Steel

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Panel Size:

2x4

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

11

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our t

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

2X4 EM SINGLE BASKET TROFFER

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

12.9
